PCB Capabilities

HRPCBA, as a leading PCB supplier in Shenzhen

We have introduced modern production and testing equipment, as well as advanced technology to provide complex design solutions such as High Density Interconnect (HDI) and multilayer boards to meet the diverse needs of our customers. We also provide one-stop service for quick samples, small and medium quantities and large quantities for our customers.

HRPCBA has a number of qualification certificates such as ISO, IATF16949, CQC, UL, ROHS, and so on. We strictly follow the standards set by IPC Product Assurance Council for production. We guarantee the high quality of our products while ensuring timely delivery.
At the same time, we focus on environmental protection and sustainable development, and are committed to providing our customers with green electronic manufacturing services where high quality and environmental protection go hand in hand.

If you are still looking for suppliers who can deliver on time and high quality products for your project, you are welcome to contact us for more information about HRPCBA. We will be your reliable pcb supplier.

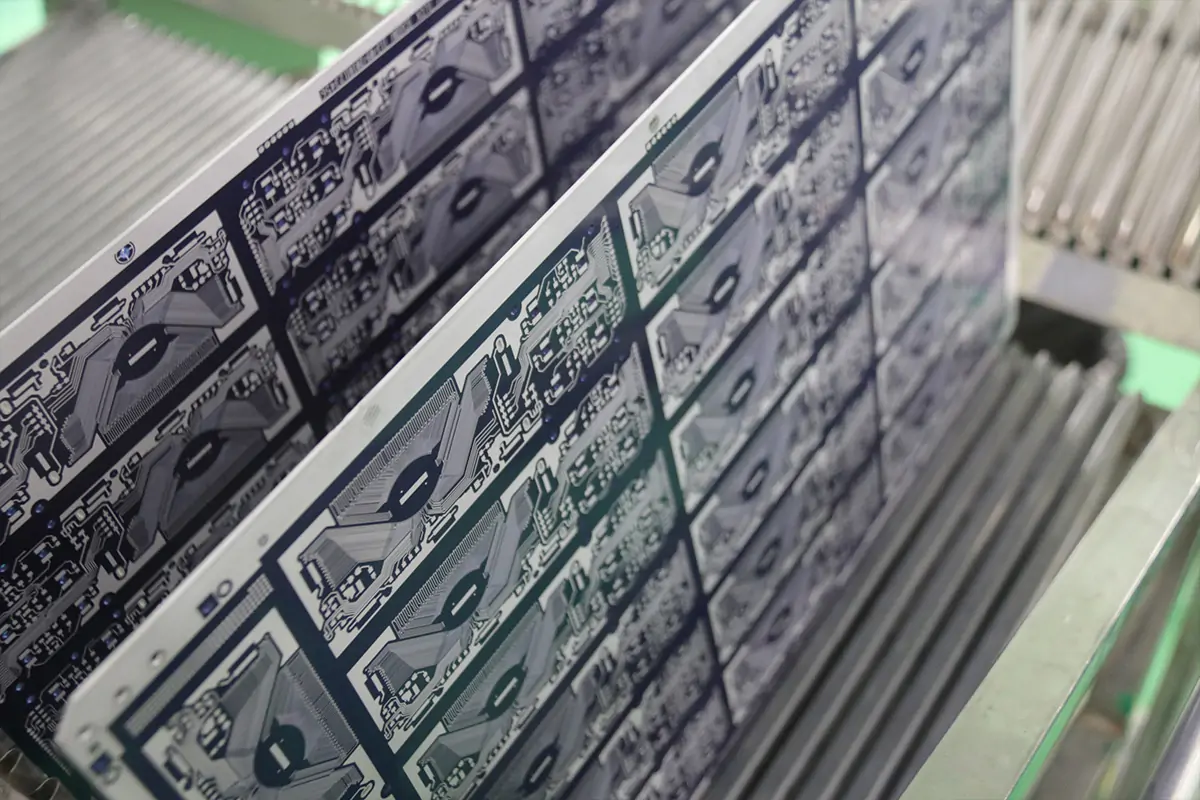

PCB production capacity

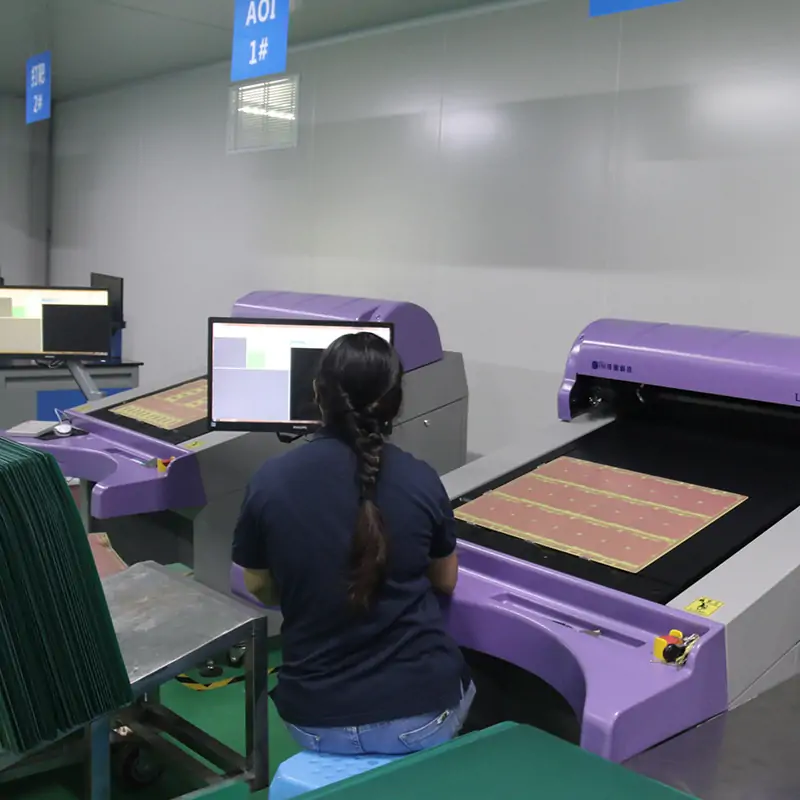

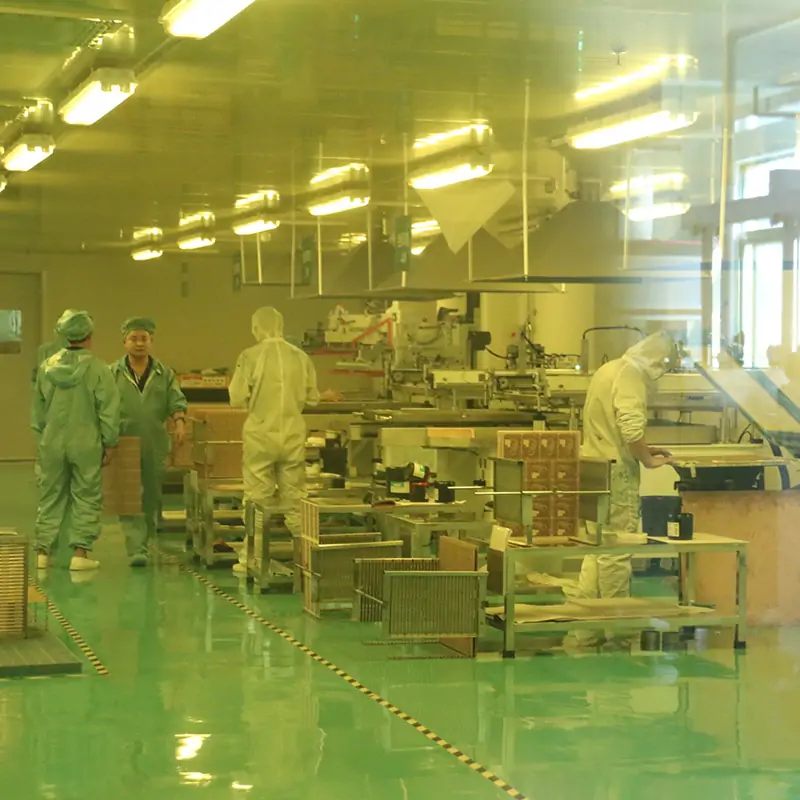

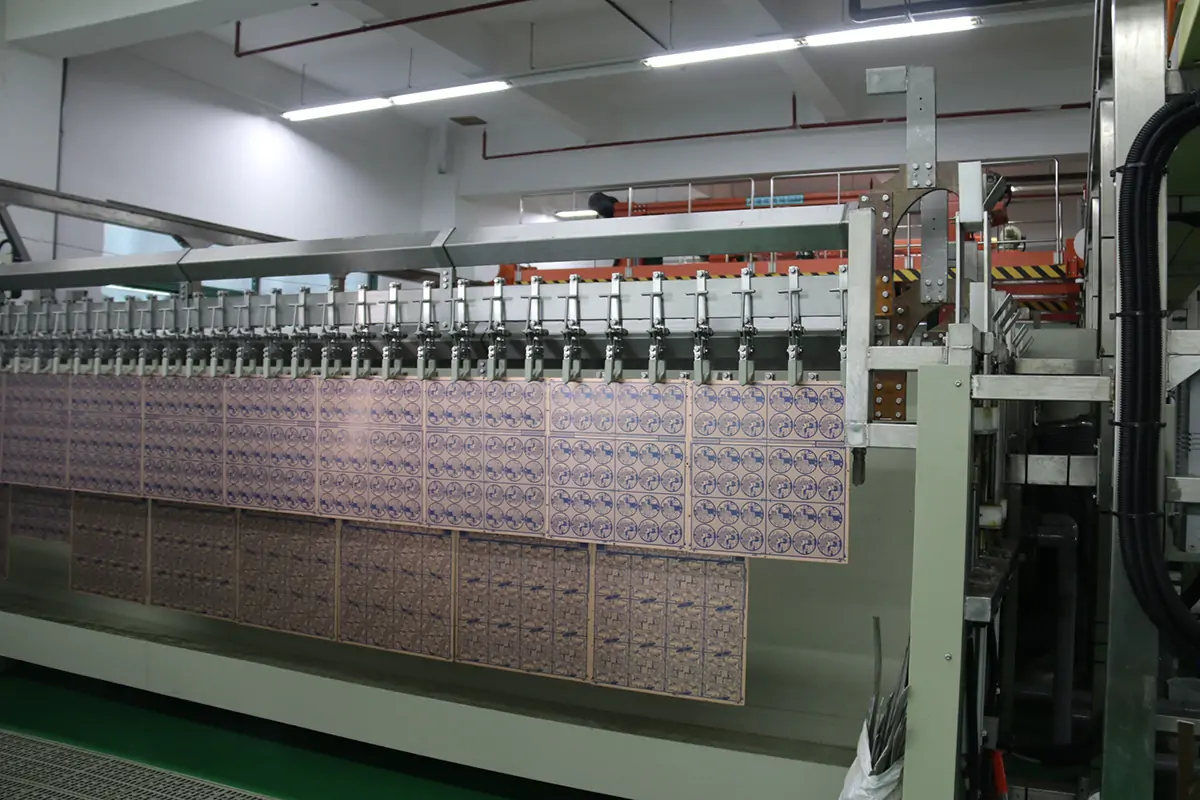

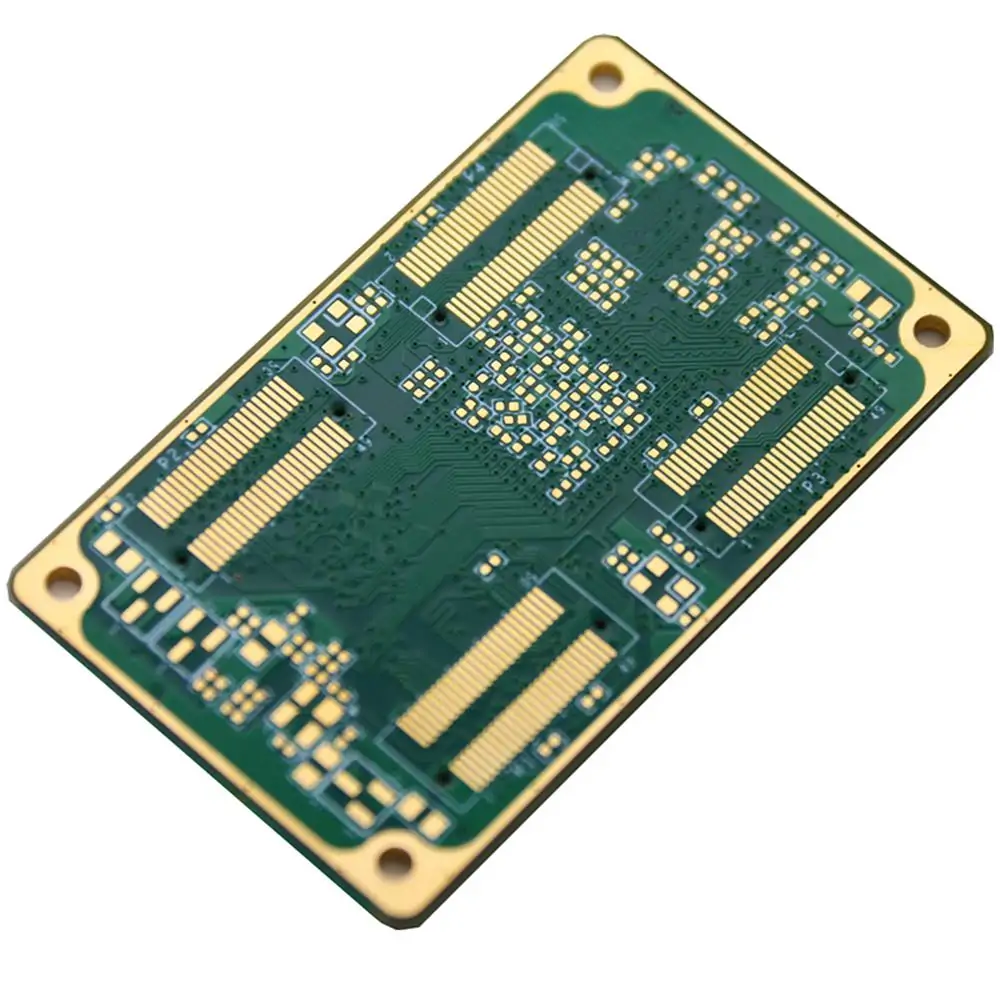

We have a fully equipped PCB production line with end-to-end capabilities, from design and prototyping to mass production. Our production supports various types of boards, We have a fully equipped PCB production line with end-to-end capabilities, from design and prototyping to mass production. Our production supports various types of boards, including multilayer, HDI, high-frequency, and flexible boards. We offer rapid response for samples and small batch orders, ensuring high quality and precision standards.

PCB Layers

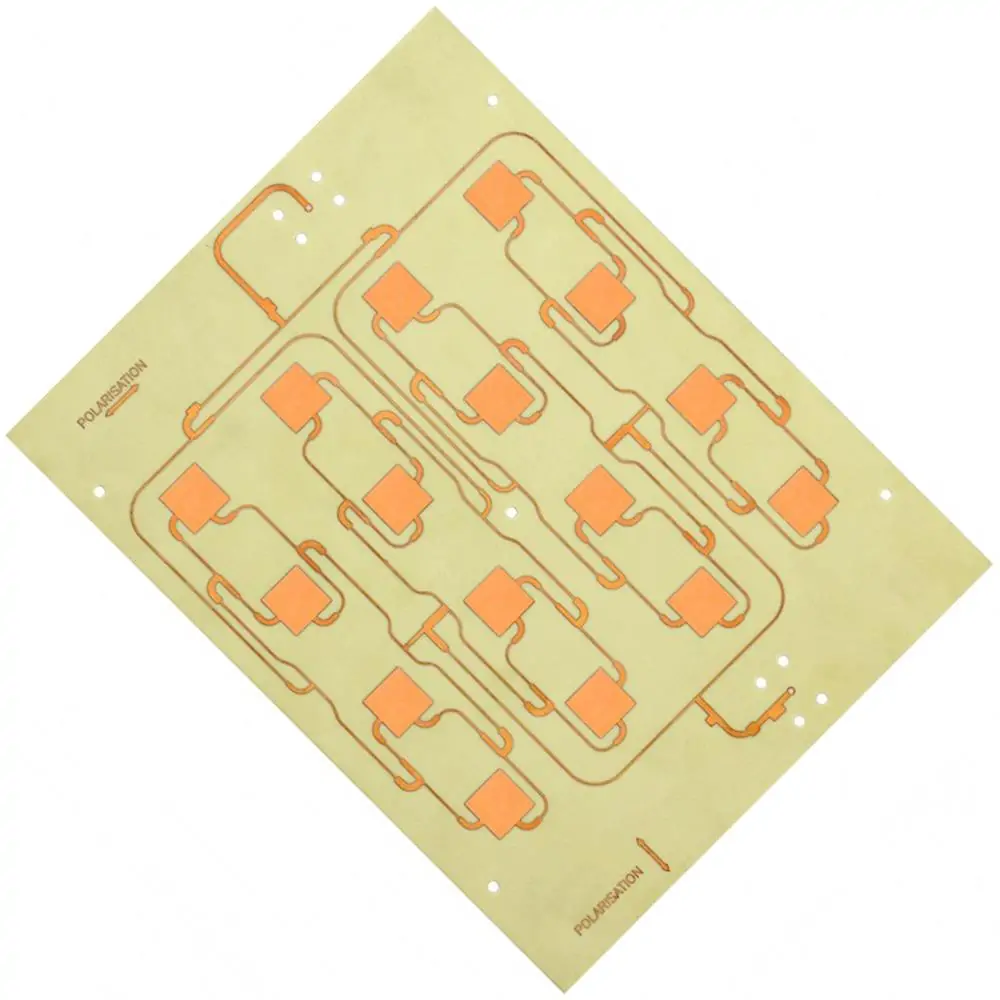

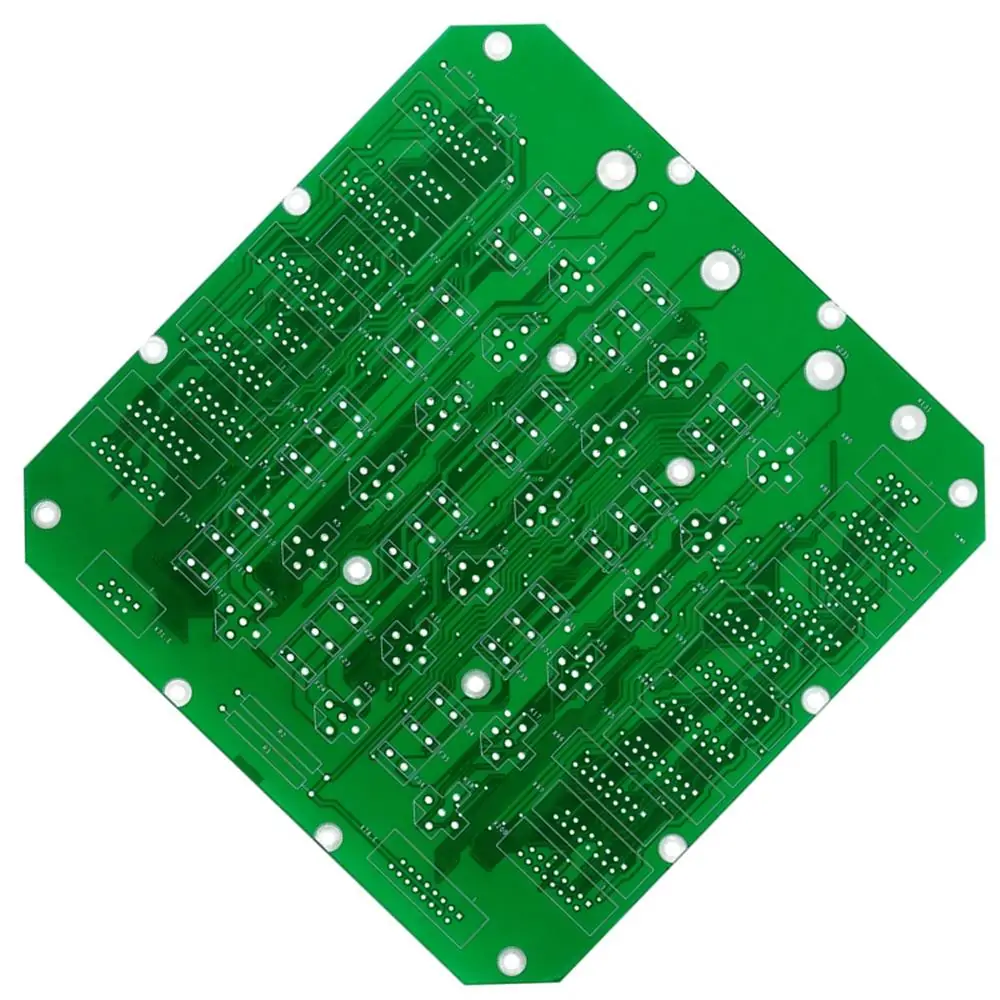

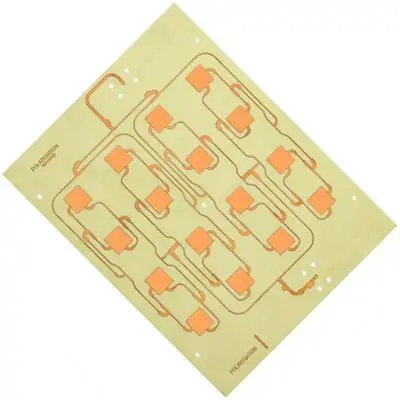

The number of layers can be made from double-sided to 32 layers, and the types of products include ordinary boards, medium and high TG value boards, soft boards, soft and hard combination boards, metal substrates, thick copper boards, high frequency boards (Rogers, F4BM, PTFE, etc.), ultra-thin boards, super-thick boards, and halogen-free boards.

PCB Process

The special process involved in circuit boards are half-hole, bonding, impedance, metal cladding, resin plug holes, blue glue, carbon oil, gold fingers, blind gongs, blind buried holes, countersunk holes, etc. The surface treatment of circuit boards can be done as immersed gold, tin spraying, OSP, nickel-palladium-gold, electro-thickness gold, gold fingers, immersed silver, immersed tin, immersed gold + OSP and so on.

PCB Application Areas

The circuit boards are widely used in industrial control, communication and telecommunication, high-end power supply, security engineering, intelligent electronics, medical automobile, new energy, LED display, aerospace and other fields.

Frequently asked questions?

• Q1.What documents do I need to provide to produce PCBs?
  A

  Usually we need you to provide the following documents:
  Gerber File, Drill File, Pick & Place File, BOM list. If more support is needed, our engineers can assist you in preparing these files.

• Q2.What is the production lead time and delivery time?
  A

  Production lead time depends on the type of PCB, complexity and order quantity. Generally the production lead time is 3-4 days for prototype and 8-16 days for mass production. For urgent orders, we can provide expedited service, the fastest delivery of prototypes within 24 hours. You can contact our sales team to confirm the detailed delivery time.

• Q3.How to make sure my project is safe?
  A

  All data files provided by customers will be kept strictly confidential, you can also sign NDA (Non-Disclosure Agreement) with us.

• Q4.How do I choose the right type of PCB for my product?
  A

  The choice of PCB type depends on your application requirements. We will have professional engineers and sales team to follow up your project and recommend the right PCB type according to your needs.

  For more questions, you can contact online customer service for consultation.
